Terminal Protector Battery Shrouds - Bend
Cat. No. FS-TOB
Weight 0.1 lbs

Terminal Protector Battery Shrouds - (Leadhead Shrouds) 90 and  45°

  • Largest selection of Terminal Shrouds covering all US based terminal configurations
  • Incorporation of "Lock Tight" tabs to reduce movement and shifting
  • Produced with corrosion resistant Polypropylene Copolymers
  • Maintains effective clearence with other industrial and deep cycle battery top elements

Part #


Description

Length

Format

Spec

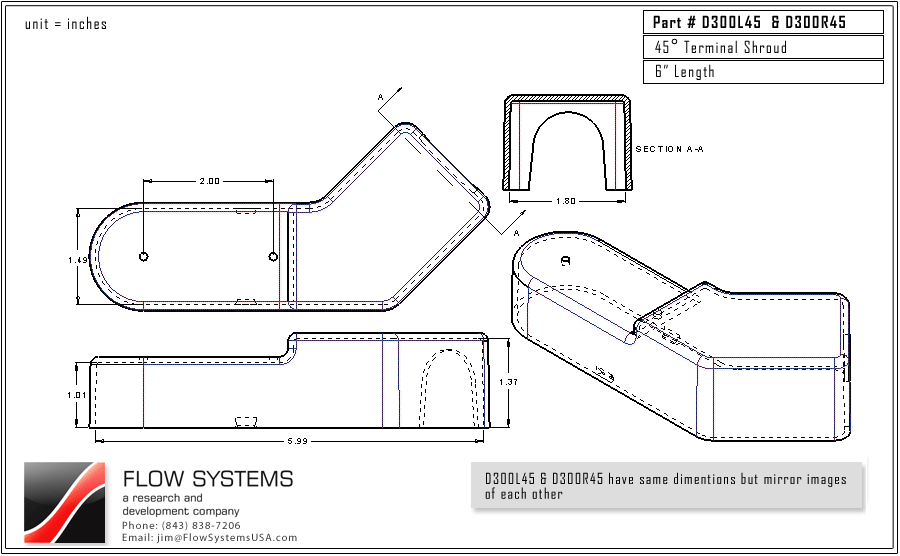

D300L4545° BEND LEFT TERMINAL
6.17"S100U TERMINAL SHROUDPDF SH0 Shroud
D300R4545° BEND RIGHT TERMINAL
6.17"S100U TERMINAL SHROUDPDF SH0 Shroud

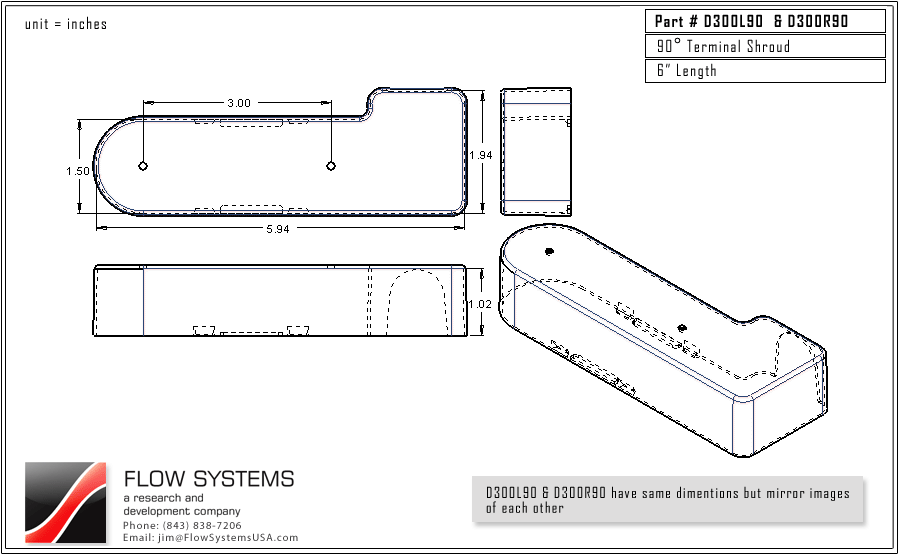

D300R9090° BEND RIGHT TERMINAL
6.11"S100U TERMINAL SHROUDPDF SH0 Shroud
D300L9090° BEND LEFT TERMINAL
6.11"S100U TERMINAL SHROUDPDF SH0 Shroud

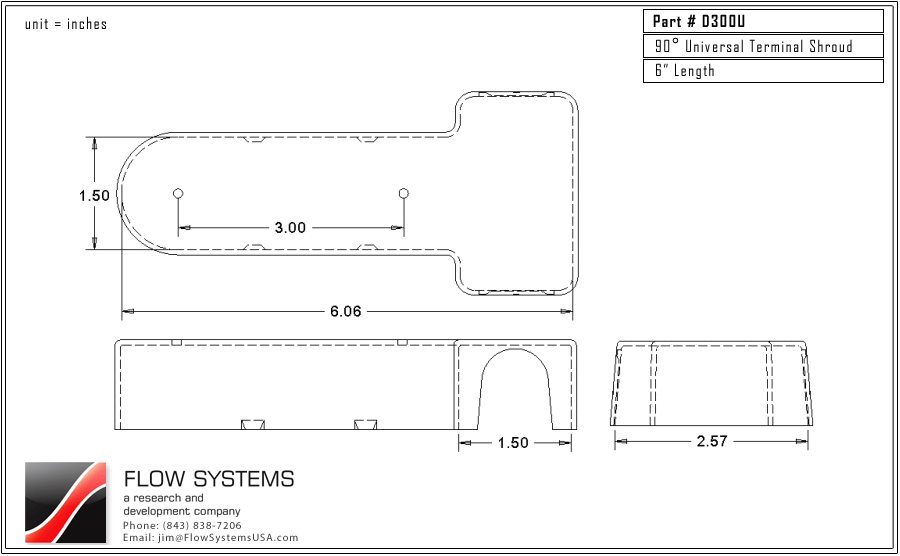

D300U90° BEND UNIVERSAL TERMINAL
6.11"S100U TERMINAL SHROUDPDF SH0 Shroud

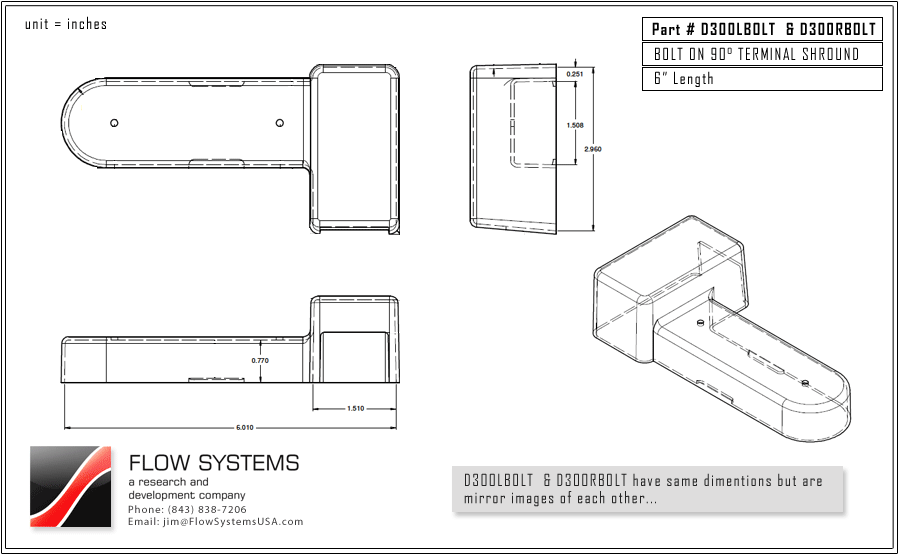

D300LBOLTBOLT 90° LEFT TERMINAL
6"S100U TERMINAL SHROUDPDF SH0 Shroud
D300RBOLTBOLT 90° RIGHT TERMINAL
6"S100U TERMINAL SHROUDPDF SH0 Shroud

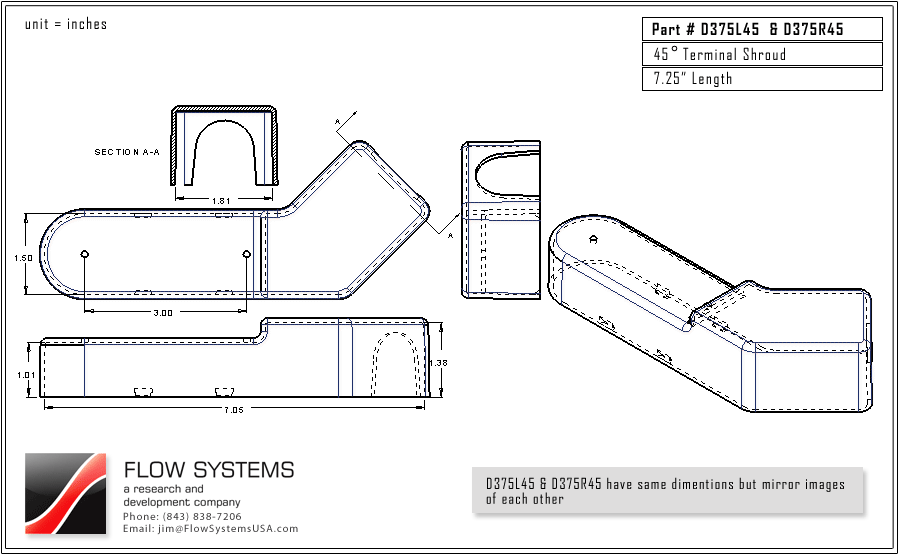

D375R4545° BEND RIGHT TERMINAL
7.22"S100U TERMINAL SHROUDPDF SH0 Shroud
D375L4545° BEND LEFT TERMINAL
7.22"S100U TERMINAL SHROUDPDF SH0 Shroud

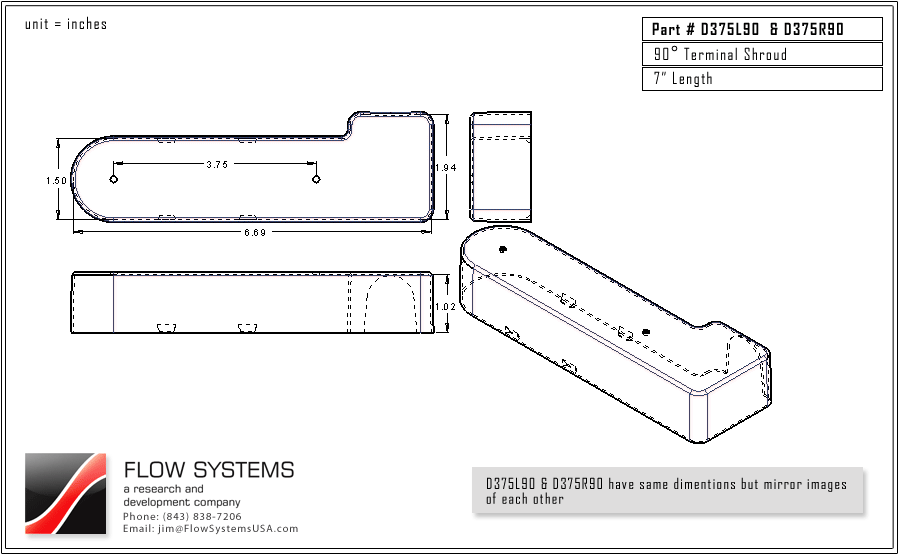

D375L9090° BEND LEFT TERMINAL
6.86"S100U TERMINAL SHROUDPDF SH0 Shroud
D375R9090° BEND RIGHT TERMINAL 6.86"S100U TERMINAL SHROUDPDF SH0 Shroud

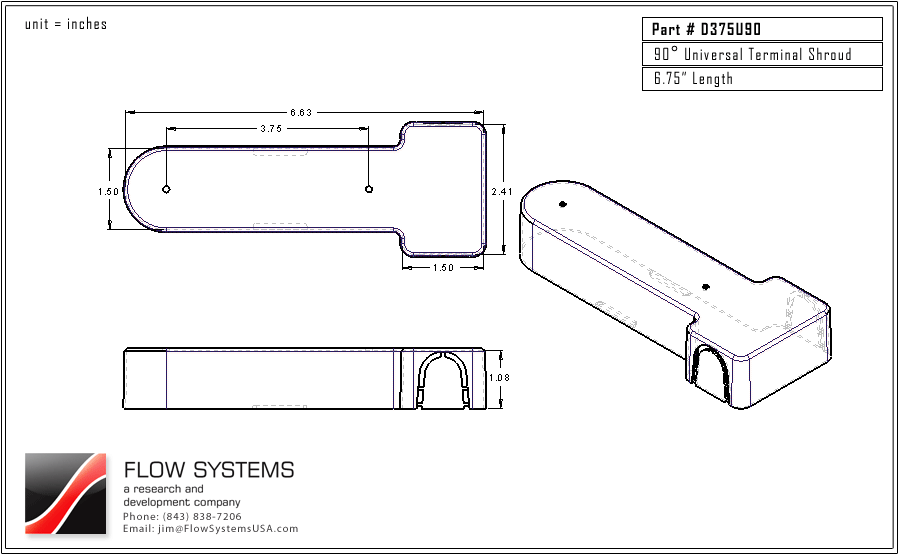

D375U90° BEND UNIVERSAL TERMINAL
6.75"S100U TERMINAL SHROUDPDF SH0 Shroud
D375RBOLTBOLT 90° RIGHT TERMINAL 6.75"S100U TERMINAL SHROUDPDF SH0 Shroud

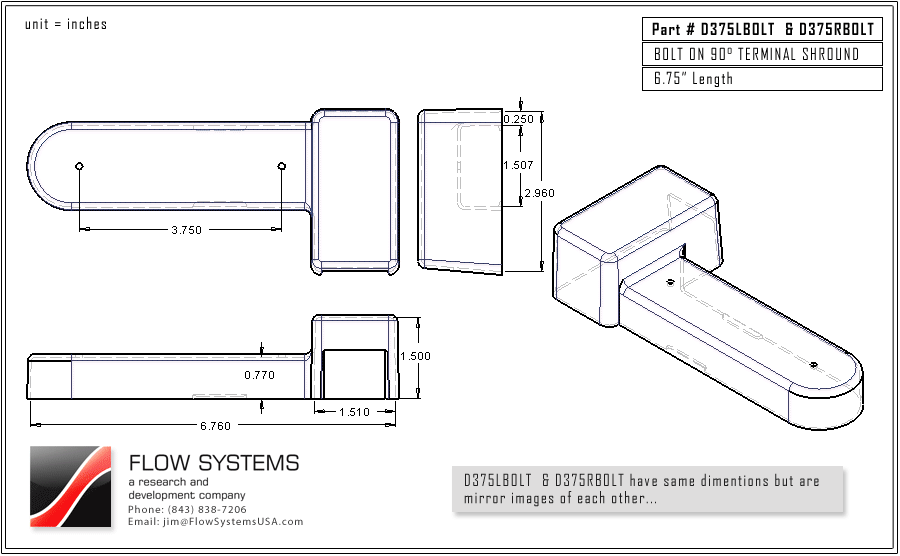

D375LBOLTBOLT 90° LEFT TERMINAL
6.75"S100U TERMINAL SHROUDPDF SH0 Shroud

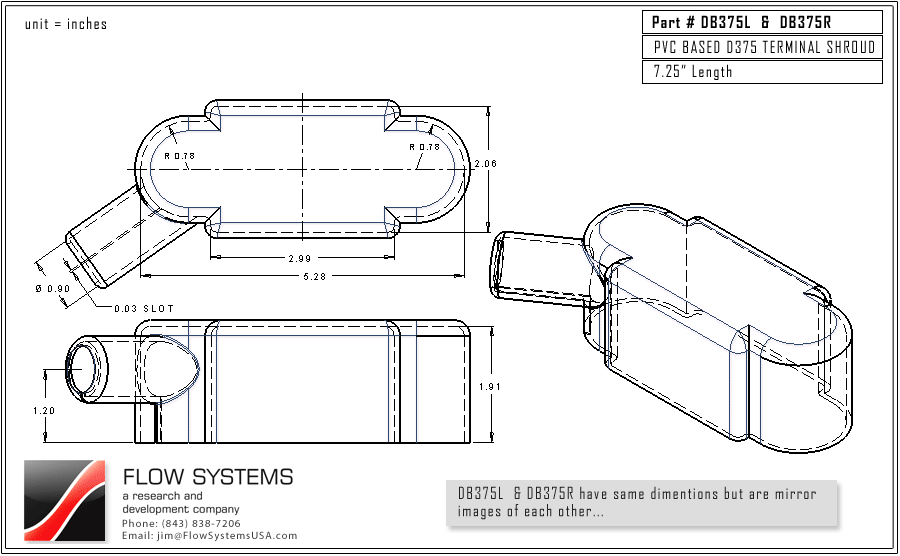

DB375LPVC BASED D375 LEFT TERMINAL
7.25""S100U TERMINAL SHROUDPDF SH0 Shroud
DB375RPVC BASED D375 RIGHT TERMINAL
7.25"S100U TERMINAL SHROUDPDF SH0 Shroud

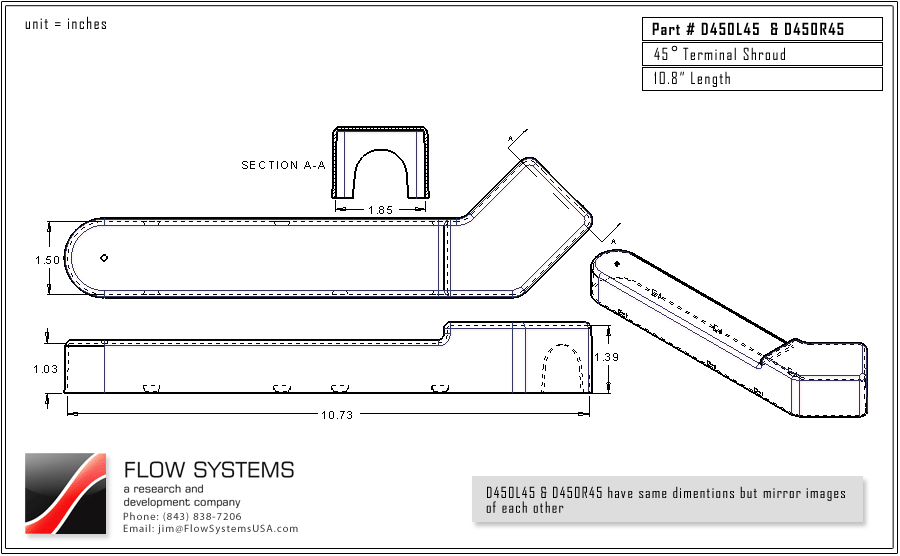

D450L4545° BEND LEFT TERMINAL 10.86"S100U TERMINAL SHROUDPDF SH0 Shroud
D450R4545° BEND RIGHT TERMINAL
10.86"COMING SOONPDF SH0 Shroud

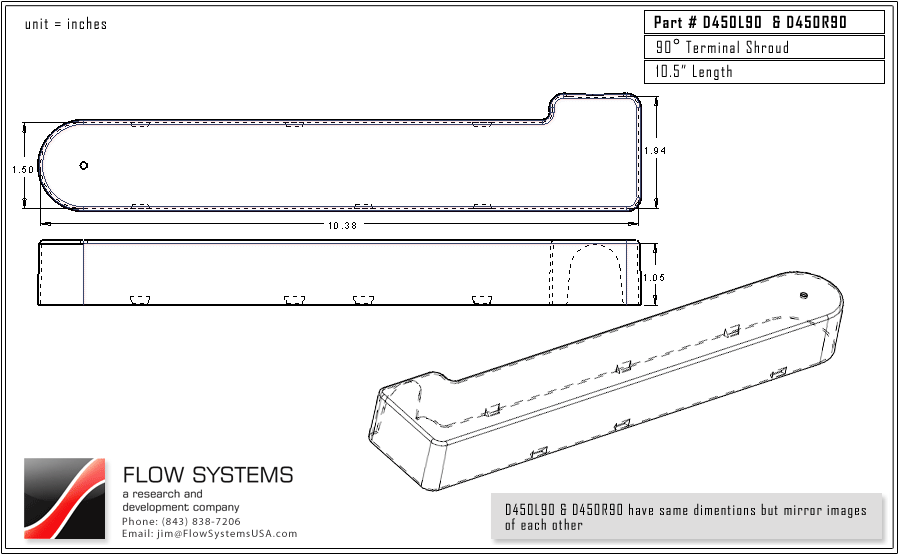

D450L9090° BEND LEFT TERMINAL
10.47"COMING SOONPDF SH0 Shroud
D450R9090° BEND RIGHT TERMINAL
10.47"COMING SOONPDF SH0 Shroud
