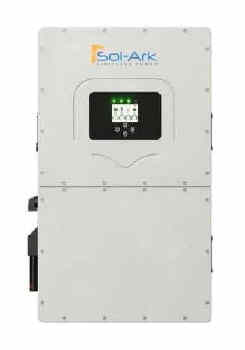

Sol-Ark 60K 3-Phase Commercial Hybrid Inverter
Cat. No. 60K-3P-480V
Weight 176 lbs | $20,327.26 |
Sol-Ark 60K 3-Phase Output 480/277 Vac Hybrid Inverter. High Voltage Battery
(160-800V). Nema 3-R. 10 Year Standard Warranty. (SKU Part Number SA-60K-3P)
Sol-Ark
World Class Solar Inverter Technology
- Easy Install - the 60K Inverter comes with everything you need to install
it. Nicely packaged for added efficiency
- Fleet Management - with Sol-Ark's remote access features and app you
are never out of touch to quickly repair or adjust any system without being
on site
- Ac/DC Coupling & Stackable - supports simultaneous DC and AC coupling.
Boots PV energy without increasing PV array size and reduces storage inverter
costs up to 30%
- Warranty and Reliability - comes with award winning iron clad 10 year
warranty and Sol-Ark's 7 day a week live support to assist you in all your
needs
| Inverter Model Name |
60K-3P-480V |
| Sol-Ark Product SKU |
60K-3P-480V |
| Input Data (PV) |
| Max. Allowed PV Power (STC) |
78,000W |
| MPPT Voltage Range |
150-850V |
| Startup Voltage |
180V |
| Max. Input Voltage |
1 1,000V |
| Max. operating input current per MPPT |
36A |
| Max. short circuit current per MPPT |
55A |
| No. of MPP Trackers |
4 |
| No. of PV Strings per MPPT |
2 |
| Max. AC Coupled Input |
60,000W |
