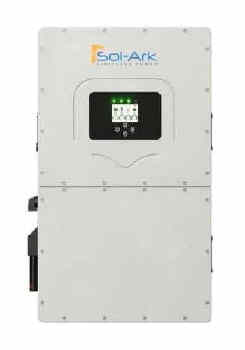

Sol-Ark 30K 3-Phase
Cat. No. 30K-3P-208V
Weight 176 lbs | $15,009.08 |
Sol-Ark 30K 3-Phase Output 208 / 240Vac Hybrid Inverter. High Voltage Battery
(150-550V). Nema 3-R. 10 Year Standard Warranty.
World Class Solar Inverter Technology
- 39kW Solar Input Power
- 30kW Output Power Off-Grid
- Full Generator Compatibility
- Outdoor Rated NEMA 3R
- Easy Install - the 30K Inverter comes with everything you need to install
it. Nicely packaged for added efficiency
- Fleet Management - with Sol-Ark's remote access features and app you
are never out of touch to quickly repair or adjust any system without being
on site
- AC/DC Coupling & Stackable - supports simultaneous DC and AC coupling.
Boots PV energy without increasing PV array size and reduces storage inverter
costs up to 30%
- Warranty and Reliability - comes with award winning iron clad 10 year
warranty and Sol-Ark's 7 day a week live support to assist you in all your
needs
30K-208V
C&I Hybrid Inverter
| Inverter Model Name |
30K-3P-208V |
| Sol-Ark Product SKU |
30K-3P-208V |
| Input Data (PV) |
| Max. Allowed PV Power (STC) |
39,000W |
| MPPT Voltage Range |
150-500V |
| Startup Voltage |
180V |
| Max. Input Voltage 1 |
550V |
| Max. operating input current per MPPT |
36A |
| Max. short circuit current per MPPT |
55A |
| No. of MPP Trackers |
4 |
| No. of PV Strings per MPPT |
2 |
| Max. AC Coupled Input Power |
30,000W |
