Intercell Connector Battery Shrouds
Cat. No. FS-C
Weight 0.1 lbs

Intercell Connector Battery Shrouds


 18 sizes of standard shrouds, 26 specialty shroud configurations, custom development available
  Designed to fit all US and Foreign made industrial batteries
  Prevent accidental short-circuiting
  Securely affixes to Inter-Cell connectors
  Maintains effective clearance between vent caps and other battery top elements
  US's largest producer of injection molded industrial battery components

Battery Shroud




Part # A B C D Format

Spec




(length-I.D.)
(width-I.D.)
(height-O.D.)
(c-c)

SH0


3 3/4"
1 3/8"

21/32"


2 1/4"
BATTERY SHROUD
PDF SH0 Shroud

SH1


4 27/64"
1 3/8"
21/32"
3 1/32"
BATTERY SHROUD
PDF SH0 Shroud

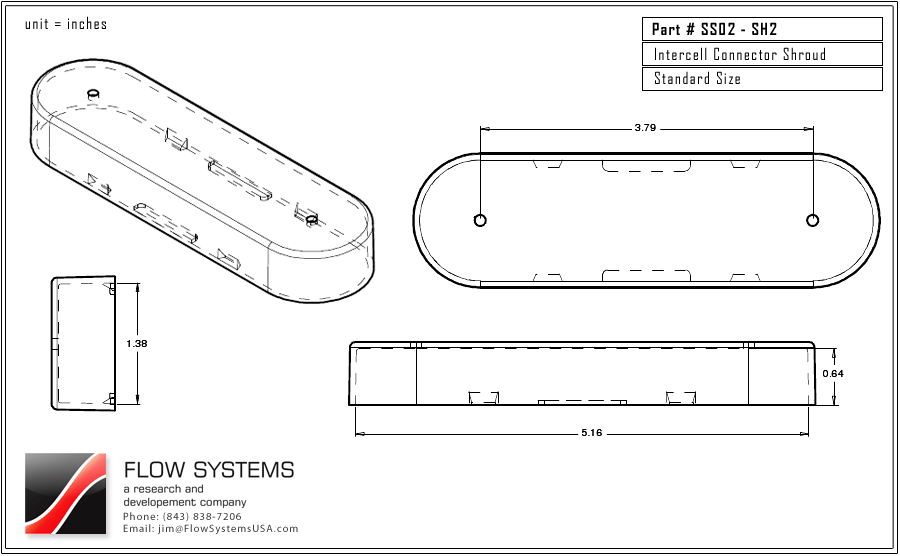

SH2
5 7/64"
1 3/8"
21/32"
3 11/16"
BATTERY SHROUD
PDF SH0 Shroud

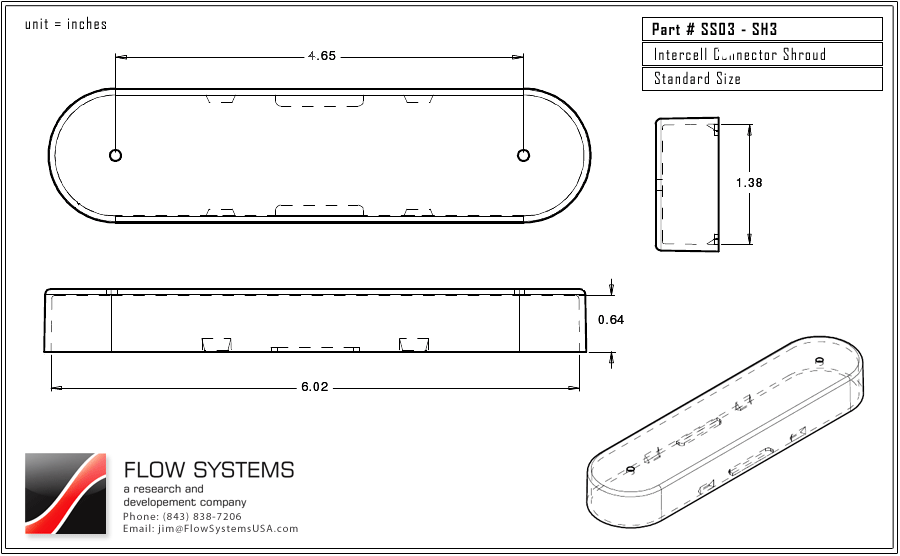

SH3
5 31/32"
1 3/8"
41/64"
4 9/16"
BATTERY SHROUD
PDF SH0 Shroud

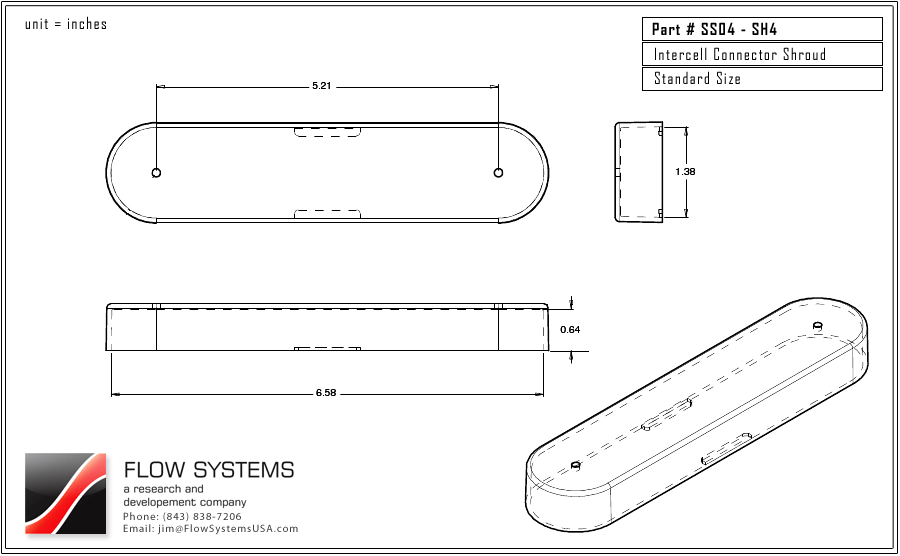

SH4
6 17/32"
1 3/8"
5/8"
5 5/32"
BATTERY SHROUD
PDF SH0 Shroud

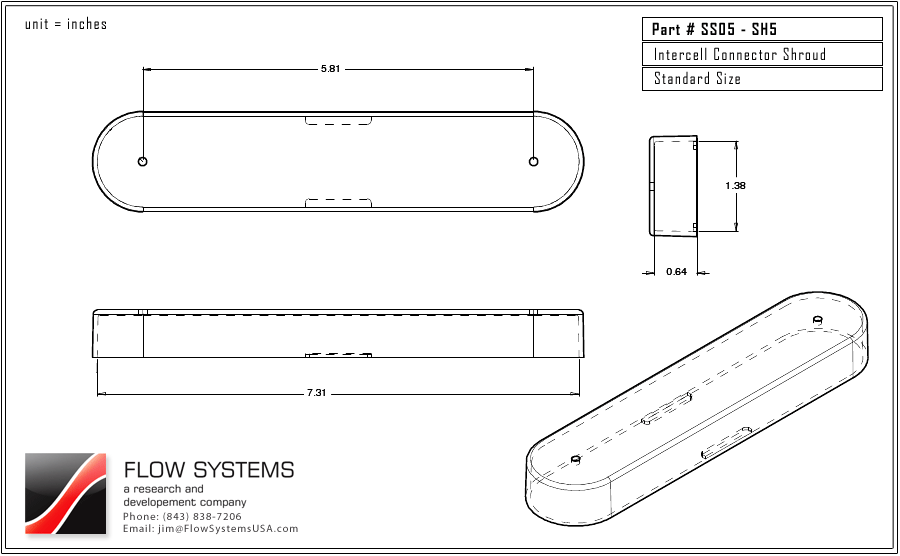

SH5
7 3/16"
1 25/64"
5/8"
5 51/64"
BATTERY SHROUD
PDF SH0 Shroud

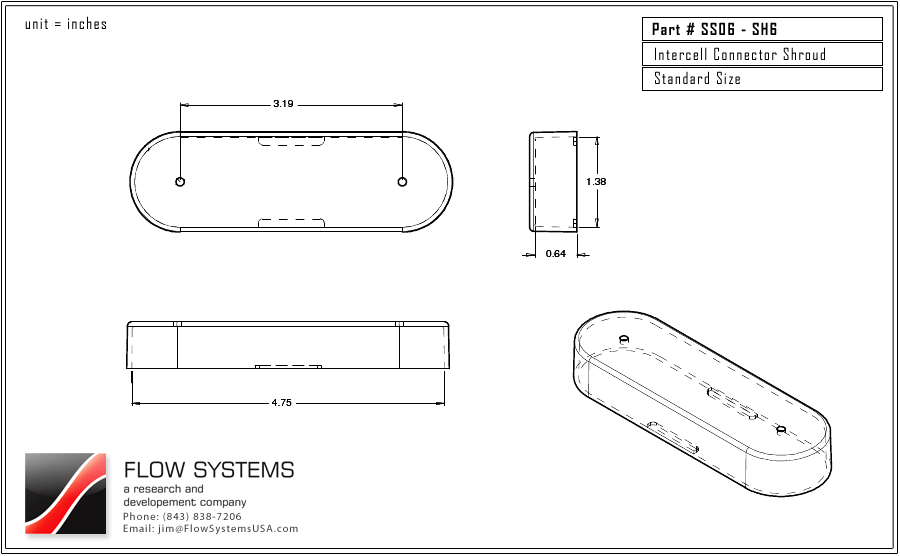

SH6
4 19/32"
1 3/8"
5/8"
3 13/64"
BATTERY SHROUD
PDF SH0 Shroud

SH7
11 13/64"
1 25/64"
41/64"
9 47/64"
BATTERY SHROUD
PDF SH0 Shroud

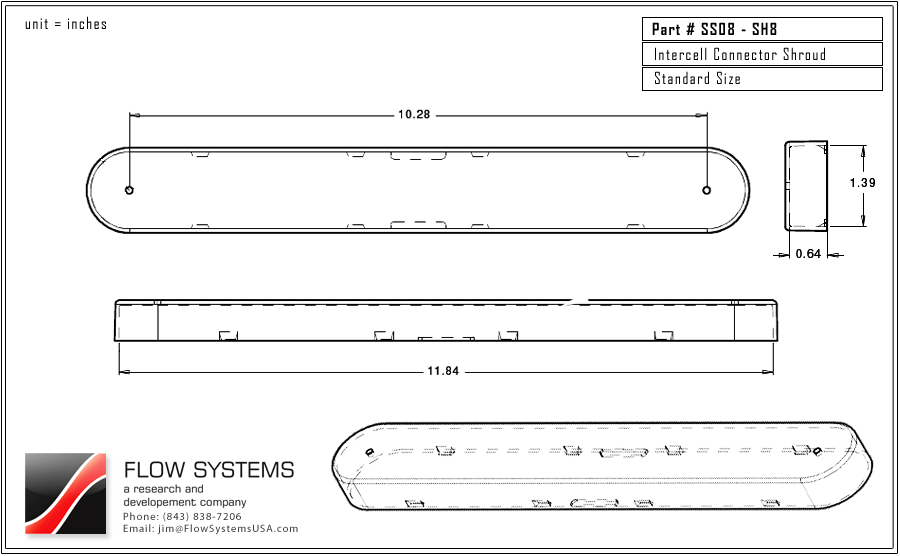

SH8
11 53/64"
1 25/64"
41/64"
10 23/64"
BATTERY SHROUD
PDF SH0 Shroud

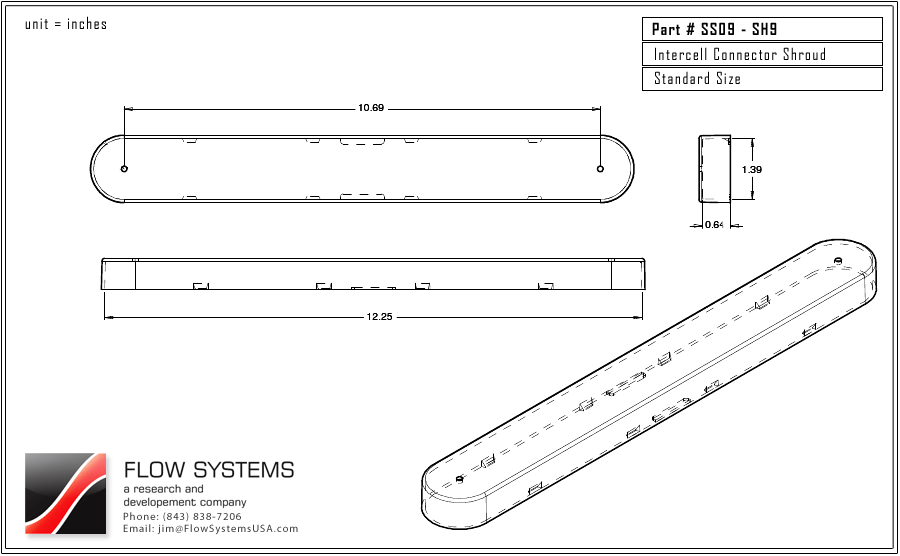

SH9
12 13/64"
1 25/64"
41/64"
10 23/32"
BATTERY SHROUD
PDF SH0 Shroud

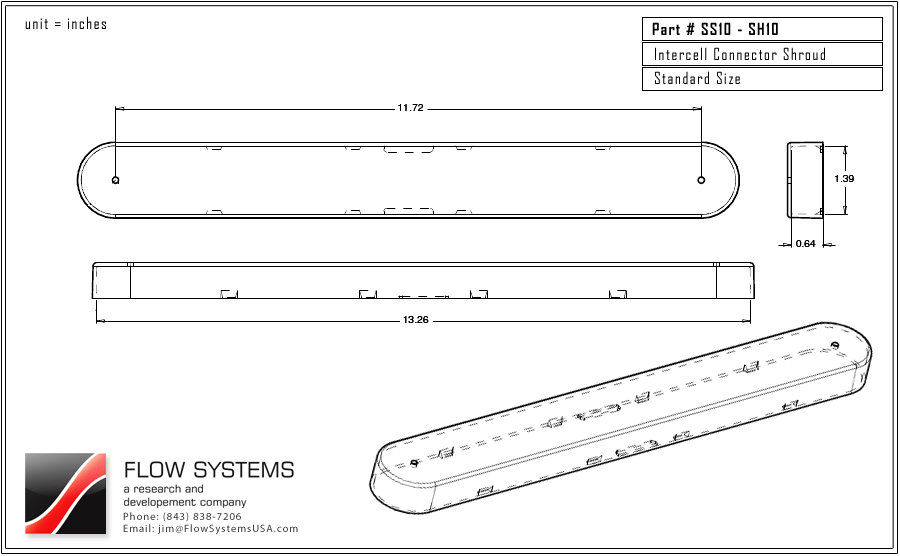

SH10
13 15/64"
1 25/64"
41/64"
11 3/4"
BATTERY SHROUD
PDF SH0 Shroud

SH11
14 7/32"
1 25/64"
41/64"
12 3/4"
BATTERY SHROUD
PDF SH0 Shroud

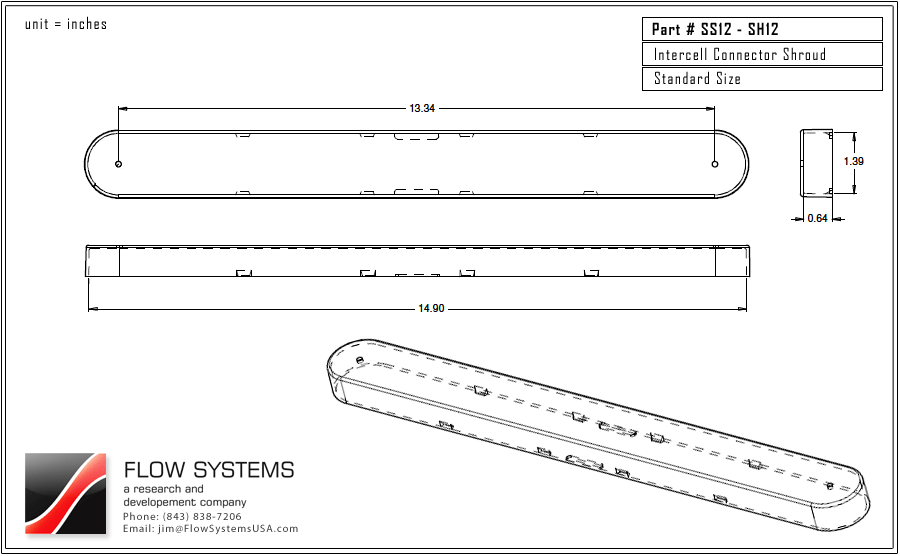

SH12
14 7/8"
1 25/64"
41/64"
13 25/64"
BATTERY SHROUD
PDF SH0 Shroud

SH13
20 3/8"
1 25/64"
41/64"

18 5/32"
19 7/8"


BATTERY SHROUD
PDF SH0 Shroud

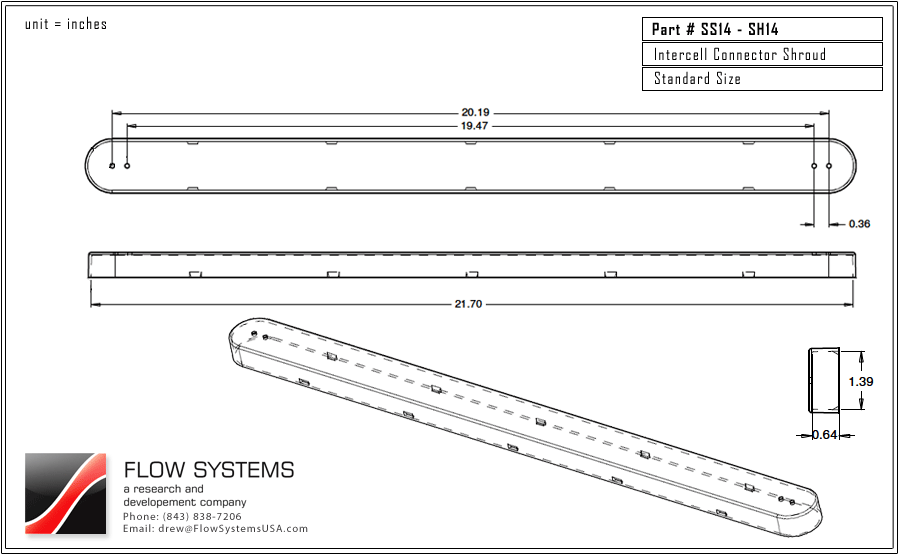

SH14
21 3/4"
1 25/64"
41/64"
19 1/2"
20 5/16"

BATTERY SHROUD
PDF SH0 Shroud

SH15
16 11/16"
1 25/64"
41/64"
15 3/16"
BATTERY SHROUD
PDF SH0 Shroud

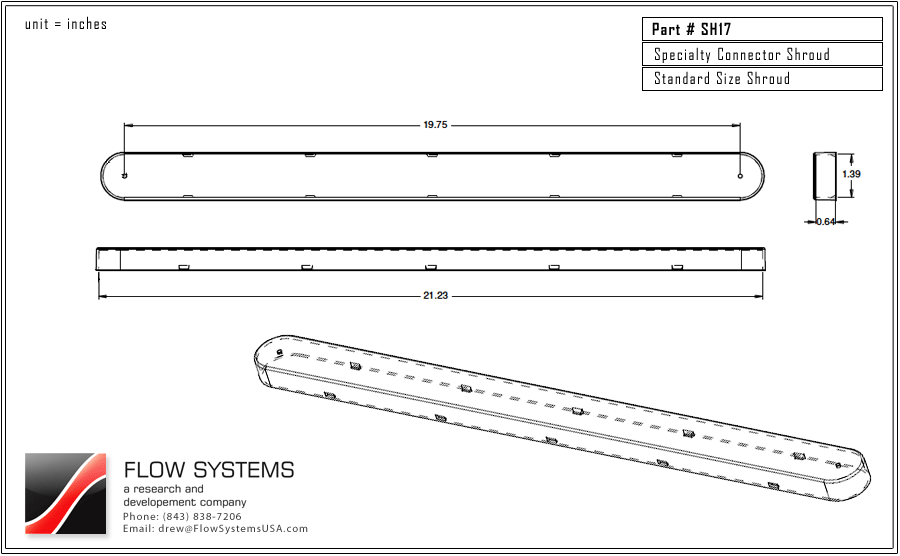

SH17
21.23"
1 3/8"
41/64"
19 3/4"
BATTERY SHROUD
PDF SH0 Shroud

SHZ
5.16"
1.41
.715"
3 3/4"
BATTERY SHROUD
PDF SH0 Shroud
