EcoVantage Catalog

Home: EcoVantage Catalog: Engineered Systems: RV Solar Kits:

Solar Flex Kits and Modules (Flat, bendable solar)
Cat. No. GP-FLEX
Weight 25 lbs

The Go Power!  Solar FlexTM panels are aerodynamic and DURABLE - a virtually unbreakable solar battery charger for RVs, boats, work trucks and long-haul trailers and sleeper cabs. These solar panels are designed to provide a powerful charging  solution for batteries and conform to almost any surface.  Unlike other ‘flexible’ products, Solar FlexTM uses high-efficiency monocrystalline cells that produce more power per square foot than any other flexible panel on the market.

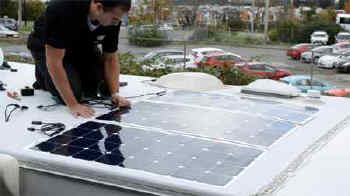

An impermeable lamination coats the entire module, allowing it to contour and flex against curved areas, eliminating any need for custom mounts. The panel can be affixed by adhesive or screw mounting options and grommets are an added bonus for ease-of-installation. The thin, lightweight module can also be sewn into canvas, making it a truly versatile solar module.


  • Avoids custom mounts (modules curves up to 30 degrees)

  • Can be affixed with adhesive or screws

  • Provides a durable  and walkable surface (module is less than 1/8” / 3mm thick)

  • Is ideal for lightweight RVs (modules are 82% lighter)

                           Solar Flex Kits













Output power2x 100 W100 W30 W
Solar cellFlexible, back-contact monocrystalline
InstallationPenetrating and adhesive roof mount
Solar controller30 A, PWM30 A, PWM10A, PWM
Expansion capabilityGP-FLEX-100E expansion kit N/A
Accessories (included)50' of MC4 output cable (#10), mounting hardware
Accessories (optional)Solar expansion kits, can be built into a complete solar and inverter system
Module Warranty10 years 10 years10 years

Specifications for Solar Modules and Controller

Solar cell typeMonocrystallineMonocrystalline
Output power100 W30 W
Rated current5.62 A1.7 A
Open-circuit voltage20.8 V21.2 V
ConnectivityMC4 connectors (branch plug/socket included in expansion kits)
Solar controller30 A, flush mount PWM10 A, wall mount PWM
MaterialLaminated TPT backsheet
FrameNone, includes grommets for screw installation
Dimensions  (H x W x D)41.7 x 21.3 x 0.1 in
1060 x 540 x 3 mm
21.1 x 15.25 x 0.1 in
537 x 388 x 3 mm
Weight2.9 lb /1.35 kg1.1 lb / 0.49 kg
Module warranty10 years

10 years

Controller warranty5 years1 year
