RV Solar Extreme Charging System (480 watts)
Cat. No. Solar Extreme
Weight 25.5 lbs

The Solar Extreme is Go Power!'s largerst solar and inverter system on the market. This system will produce enough power to run up to 3000 watts of appliances or electronics at a time and depending on your exposure to the sun, top up your battery bank at a rate of 27 amps per hour.  As a bonus, our team has included a smart converter charger and transfer switch package to work seamlessly with our solar modules and power inverter. This package provides you charging flexibility between the sun and shore power, as well as the ability to connect power to your 120 volt outlets. A SOLAR EXTREME system will provide you will all of the comforts of home and allow you to be truly 'off the grid'.

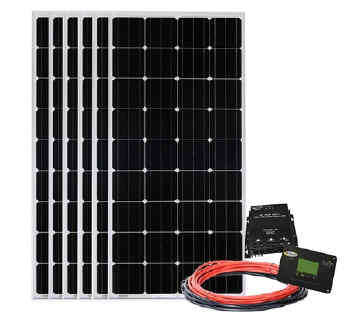

Included in System:

  • 160 watt solar charging kit + 2 x 160 watt expansion kits (GP-RV-160 + GP-RV-160E)
  • 3000 watt pure sine wave inverter for AC power (GP-SW3000-12)
  • 30 amp pulse width modulated digital solar controller (GP-PWM-30)
  • 75 amp smart battery charger (GPC-75-MAX)
  • 30 amp pre-wired automatic shore power/inverter AC switching kit (GP-TS)
  • DC inverter install kit (GP-DC-KIT5)
  • Inverter Remote on/off (GP-SWR-B)
  • 50' of MC4 output cable (#10) and all mounting hardware (2 x GP-MH-2)
MC4 output cable

Solar Modules and Controller

Solar cell typeMonocrystalline
Output power
480 W
Rated current
27.4 A
Rated DC voltage
17.5 V
Module efficiency17.8%
ConnectivityMC4 connectors
Solar controller30 A PWM, multi battery option, 4 stage charging, digital display and flush mount
Frame typeSilver anodized aluminum frame
Dimensions (each)58.3 x 26.5 x 1.38 in / 1482 x 674 x 35 mm
Weight (each)
24.5 lb / 11 kg
25 years (module) / 5 years (controller)

Inverter, Fuse Kit and Remote

Output waveform
Pure sine wave
Continuous output power3000 W
Surge rating6000 W
Inverter voltage (DC)12 V
Output voltage (AC)110 VAC RMS
Input voltage (DC)10.5 - 16 VDC
RemoteOn/off switch, LED monitoring and flush mount
Fuse Kit4/0 cable and 400 A inverter fuse
Certifications (inverter)CE, FCC
Dimensions17.8 x 8.2 x 6.5 in / 452 x 208 x 166 mm
Weight22 lbs / 9.8 kg
Warranty2 years

Smart Converter Charger

75 A
Output voltage (DC)13.6 V
Max power output (continuous)1065 W
Dimensions7.5 x 10.5 x 3.5 in / 191 x 267 x 89 mm
Weight5 lbs / 2.3 kg

Transfer Switch

30 A
Electrical rating120 VAC 60Hz
Dimensions9.65 x 7.28 x 4.75 in / 245 x 185 x 121 mm
Weight3 lbs / 1.4 kg
Warranty2 years
